INSTRUCTION - DOUKAS
l 0℉/-18℃ super cold weather performance.
l 1/3 Weight VS lead-acid batteries.
l 5 times shelf Life VS lead-acid batteries.
l 3 times longer cycle life VS lead-acid batteries.
l 30%~50% higher cranking current VS lead-acid batteries.
l Quick charge acceptance.
l Intelligence built-in BMS.
l Patented robust brass terminal.
l Patented armoured design.
l Easy to read indicator.
l Quad terminal design for DKL20 and DKL30.
l Do not immerse the battery in water, use or store batteries near fire sources and heaters and in a microwave oven or high pressure container.
l Do not reverse connect the positive and negative terminals or short-circuit the battery by connecting wires or other metal objects to the positive and negative terminals.
l Do not use nails or other sharp objects to pierce the battery shell, do not knock or step on the battery.
l Do not hit, throw or cause serious mechanical shock to the battery.
l Do not alter, modify, or repair the battery in any way and directly weld the battery terminals.
l Do not mix with primary batteries (such as dry batteries) or batteries of different capacities, types, and brands.
l Do not use multiple batteries in parallel or in series. DO NOT connect batteries directly to a wall outlet.
l Do not hold down the voltage display button for too long (more than a few seconds).
l Do not charge the battery at a voltage exceeding 15.0V or charge the battery with the automatic "desulfurization mode" function.
l Not recommended for vintage motorcycle. Use in vintage vehicles could void warranty.
l Do not use for customer modified vehicles.
l Do not use in V-Twin engine vehicles.
l Do not install on vehicles without a solid electronic voltage regulator.
l Keep out of the reach of children and pets.
l Do not use or store the battery in high humidity and liquids which may damage the product.
l Obey all signs and instructions. Do not operate the product in any area with a potentially explosive atmosphere, including fueling areas or areas which contain chemicals or particles such as grain, dust, or metal powders.
l Do not use the product where the failure of the product could lead to injury, death, or severe environmental damage.
l Do not allow minors to use this product without detailed instructions and warnings provided by the purchasing adult. The "Purchaser" must indemnify DOUKAS for any improper use by a minor.
l Do not use the product outside the recommended operating temperature range of 0ºF (-18ºC) to 140ºF (60ºC). Do not charge the product outside the range of 14ºF (-10ºC) to 113ºF (45ºC).
l Do not store the product in temperatures exceeding 140ºF (60ºC).
l Do not leave the product uncharged for more than six months.
l Do not dispose of the product in household trash. Take the product to a local battery recycling center.
l Do not forget that lithium-ion batteries are lighter than lead-acid batteries. Using this product as a replacement may affect weight distribution. Do not neglect to account for these changes to ensure equipment stability. Do not assume responsibility for any damages or accidents due to improper weight distribution.
l Do not use a charger that isn’t compatible with 12-volt Lithium Iron Phosphate (LiFePO4) batteries or low quality charger lacks certification.
l Do not leave connections loose. Make sure all connections are properly secured with 70-90 inch-pounds of torque. Do not allow loose connections, as they can cause overheating, performance loss, or fire.
l Do not use the product without consulting your doctor if you rely on pacemakers, defibrillators, or other medical devices. Do not continue using the product if you suspect interference with any medical device.
l Only use battery chargers designed for 12V lithium-ion batteries with an output voltage between 14.0~14.9V. Using recommended DOUKAS Smart Battery Chargers: DKC2A. Be cautious of using low-quality chargers, as they may present a severe electrical risk that can result in injury to person and property, as well as shorten the life of the product and cause the product to malfunction. DOUKAS is not responsible for the user’s safety when using accessories or chargers that are not approved by DOUKAS. During charging, if the battery becomes excessively warm, deforms, swells, or emits smoke or odor, discontinue use immediately and contact support.
l Always remove the battery from the vehicle before charging.
l Connect the charger's RED wire to the battery's POSITIVE terminal, then charger's BLACK wire connects to NEGATIVE terminal. Now activate the charger.
l After charging, leave the battery for 1 to 2 hours before checking the battery voltage. If the voltage is less than 12.8V.the battery requires additional charging.
l If the battery becomes too hot to touch, stop charging the battery. Allow battery to cool before you resume charging the battery.

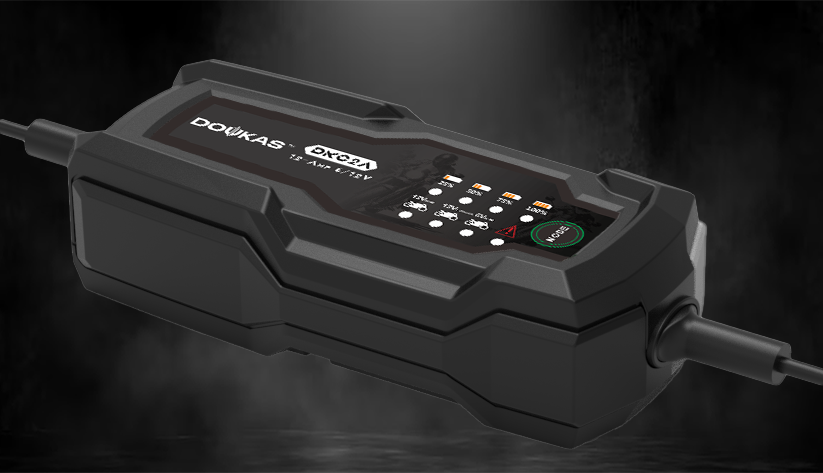

l DOUKAS Smart Battery Chargers: DKC2A.
Specification | |
Input voltage | 110V |
Input voltage range | 110V-120V |
Maximum input current | 0.6A |
Input Frequency | 50/60HZ |
Maximum input power | 40W |
Maximum output voltage | 15V |
Maximum output current | 2A |
Maximum output power | 35W |
Function | ||
power indicator |
| 25% |
| 50% | |
| 75% | |
| 100% | |
mode indicator | 5 | 12V STD mode indicator |
6 | 12V LFP mode indicator | |
7 | 6V STD mode indicator | |
alarm indicator | 8 | short circuit protection and reverse connection protection, No. 8 light shines |
Certificate: INTERTEK
Picture：
.png "1 (1).png")
l Make sure it’s fully charged prior to install the product.
l Check the battery state of charge before fitting it by pressing and holding the TEST button on the BATTERY Voltage INDICATOR located in between the terminals on top of the battery, it is recommended to charge the battery when the voltage is lower than 12.8V.
l Visually inspect the product for any signs of damage (e.g., cracks, dents). Make sure the battery terminals are free from dirt, oxidation, or corrosion.
l Install the product in any horizontal or vertical orientation, except with the terminals facing downward. Follow the below steps for the installation process:
1. Remove the original battery following the manufacturer's guidelines.
2. Compare the size of the original battery to the DOUKAS. If the original battery dimensions are larger than the DOUKAS, use the included spacers to adjust the height to match the original battery as closely as possible.
DOUKAS has 4 different sizes of spacers, please select the appropriate spacers for installation as required.
Model | Spacers Dimensions(mm) | Spacers quantity | Screw & nuts | |
M6 | M5 | |||
DKL5 | 107*56*20 | 2 | 2 | 2 |
DKL9 | 134*65*10 | 1 | 4 | / |
DKL14 | 150*87*10 | 4 | 4 | / |
DKL20 | 165*87*10 | 4 | 4 | / |
DKL30 | 165*87*10 | 4 | 4 | / |
Note: The Spacer needs to be aligned to the position and installed to the end.
3. Securely fasten the battery to the battery tray/box, making sure the battery cables reach both battery terminals.
4. Using the included fastener hardware, attach battery cable correct battery terminal (positive cable to positive terminal, negative cable to negative terminal). Make sure the battery cables connect to the correct polarity.
l The battery should be stored at 20%~100% charge.
l The battery should be stored in a clean, dry, and Ventilated environment (-20~40°C/-4~104°F), not in contact with any corrosive substances and away from sparks, heat, and fire.
l The battery should be charged completely within first 90 days, then charge once every 180 days when in storage.
l For air shipments, the battery MUST be below a 30%SOC according to air shipping IATA regulations.
l The battery should be secured with insulation and shockproof material, to avoid damage from sudden jolts and impacts.
l The battery should be handled with care when loading and unloading during transport. Do not throw the battery and avoid collisions.
l Do not transport the battery together with flammables, explosive objects, or sharp metal goods.
l Disconnect the negative battery cable from the battery, when the vehicle is in storage for a long time or used infrequently.
l If the battery is not in use for longer periods of time, check the voltage to ensure it's at or above 12.8 Volts. If the voltage is lower than 12.8V recharge as described in Section 3 of the instructions. If the voltage is lower than 8V, it is not recommended to charge. Over discharged batteries may often fail to recover the capacity.
l Keep battery wires and terminals clean and securely fastened.
l Never attempt to open the battery. Doing so will result in bodily harm and property damage.
l The Intelligent Battery Management System (BMS) provides over charge protection base oneach series of cells level.
l The Intelligent Battery Management System (BMS) provides cell balancing function to ensure long service life and battery performance.
l The Intelligent Battery Management System (BMS) can show the battery voltage from the digital indicator.
PROBLEM | POSSIBLE CAUSE | SOLUTION |
Engine cannot be cranked | The battery voltage is lower than 12V. | Remove the battery, charge it with the DKC2A charger DOUKAS suggested, and try starting it when fully charged. |
The battery does not match the vehicle or engine. | DOUKAS batteries offers great cranking performance even at low temperatures. If your specific engine requires exceptionally high cranking currents, consider to select another model with bigger capacity. | |
Still won't start after charging | Check whether the battery starting capability cannot meet the starting requirements because the ambient temperature is too low. | Recommended to use the battery within the specified temperature range. |
If the temperature environment is within the temperature range of the battery, it may be that the battery performance is reduced due to the improper use of the battery before and can no longer meet the starting demand. | Replace new battery. | |
Battery has no output. | Connect the battery firmly; connect the battery in the correct way. | |
Battery will not be charged. | The battery voltage may be too low for the battery charger to detect. | See the battery charger's instructions for more information. If the battery is stored at 12.8 volts or lower for a long time, the battery may be damaged. In this case, you are advised to replace the battery. |
The charger may be damaged, causing the battery to fail to charge. | Please check whether the charger is abnormal and ensure that the charger is in good working condition. | |
Battery won't hold a charge | Check your vehicle for parasitic voltage drains. These voltage drains can occur in many different power sport vehicles. Lithium batteries have a lower amp hour [AH] capacity compared to lead-acid batteries and will go dead faster if there is a parasitic voltage draw. | If your vehicle will be in storage for any amount of time, it is highly recommended to either fully charge and disconnect the negative cable from the battery or place the battery on an appropriate/compatible battery charger/maintainer. |
After the battery is installed, the vehicle ECU displays a blinking or black screen | It may be that the voltage of the vehicle charging system is abnormal, causing the battery to trigger overcharge protection. | Please check and repair the vehicle charging system immediately. |
Battery voltage indicator cannot be displayed | Check the battery voltage. The voltage indicator does not display when the voltage is lower than 5V. | The display can be restored by charging the battery above 5V. |
Spacers drop out | The bottom bracket clasp and slot are damaged, and there are foreign bodies in the slot. | Check whether the bottom bracket fastener and slot are complete and whether there are foreign bodies in the slot. |
Poor performance cold weather | Cold weather can adversely affect the performance of a lithium battery(due to increased resistance caused by low temperatures). DOUKAS lithium batteries are not intended for use in temperatures below 0°F/-18°C. | If your vehicle will not turn over during the first startup attempt, turn on the vehicle lights or accessories for a short period of time for press the starter button a few times].This will help to internally warm the battery. The battery should then function properly. |
Battery has expanded/battery Case or top is deformed | This is usually a case of overcharge or overvoltage due to the use of an incorrect/defective battery charger or a defective vehicle charging system. DOUKAS lithium batteries have built-in overcharge protection, but these systems also have limitations. Over discharge problems can also be caused when the incorrect battery is used. | Stop to use it immediately, contact the local dealer for recycle. |
Sudden power failure during normal Use | Bad / poor working conditions will cause the battery failure. | Make sure battery trays and holders are well connected to our batteries. |

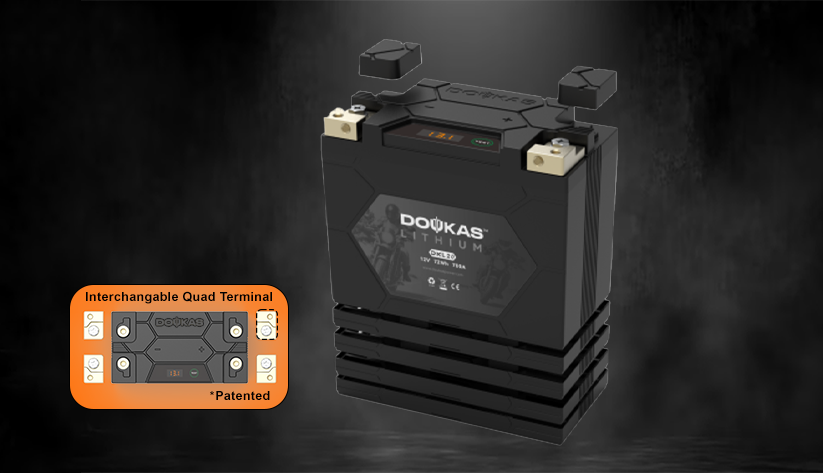

The item DKL20, DKL30 has Quad terminal design, you can adjust the polarity by move the interchangeable Quad terminal to opposite side.
Please connect the positive and negative wires to the positive and negative terminals on the same side of the battery. Do not reverse connect the positive and negative terminals.
Don’t connect all four terminal for reduce the power lack risky.
.png "23(1).png")
You can check the battery voltage by press the “TEST” button on battery top to display the battery voltage. According to the displayed voltage range, there will be different status, as shown in the table below:
VOLT/V | STATUS |
13.2-14.4 | Ready to go |
11.1-13.1 | Supplementary charge required |
8.0-11.0 | Recover charge required |
＜8.0 | Not recommended to continue use again and must be safely destroyed in accordance with local regulations |
12.WARRANTY
DOUKAS lithium batteries have a 2-year replacement warranty from date of purchase by the retail customer. Warranty applies only to the original purchaser of the battery; warranty is not transferable. If you purchased your battery through Amazon or another third-party reseller, the dealer information should be noted on your invoice.
Warranty does not cover:
l Physical damage due to abuse, improper maintenance and/or installation.
l Batteries that have been modified or disassembled.
l Use of an improper charger as noted in the CHARGING, MAINTENANCE and STORAGE sections of these instructions.
l Any damage deemed to be caused by a faulty vehicle charging system.
l Batteries subjected to voltage over 14.9 volts.
l Batteries stored below 12.9 volts.
l Batteries used in any applications other than Motorcycle, Scooter, ATV/UTV, Personal watercraft & Jet ski, Lawn mover, Snowmobile, Generator.
l Batteries that are not the correct capacity for the application.
l Batteries used in a total loss situation [such as a vehicle starting and/or ignition/accessory supply battery only with no on-board charging system].
l Batteries that were not purchased by the end user [promotional giveaway, sponsorships, etc.].
Please strictly follow the "WARNING", “CHARGING","MAINTENANCE" and other sections to use and maintain the battery, otherwise avoid warranty.
l Scooters
l Motorcycles
l ATV&UTV
l Personal watercraft &Jet ski
l Lawn mover
l Snowmobile
l Generator
The following is DOUKAS product size, voltage, capacity, CCA and other technical specifications：
Technical Specifications | ||||
Model | Dimensions:(mm) | Voltage(V) | Capacity(Ah) | CCA(A) |
DKL5 | 107*56*85 | 12 | 2 | 300 |
DKL9 | 134*65*93 | 12 | 3 | 450 |
DKL14 | 150*87*105 | 12 | 4 | 550 |
DKL20 | 165*87*130 | 12 | 6 | 700 |
DKL30 | 165*87*130 | 12 | 8 | 800 |
l DOUKAS bears no liabilities for problems caused by not properly reading and following the above instructions.
l For any questions, please contact the retailer you purchased the battery from.
l For more info about DOUKAS lithium batteries, please visit www.doukaspower.com
l This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
